Key Takeaways

Issues with check valves often develop gradually, with early signs that may be easily overlooked during routine operations.
Reverse flow, vibration, abnormal noise, pressure irregularities, and external leakage are common indicators of check valve failure.
Identifying the root causes early supports more effective diagnostics and reduces the risk of secondary equipment damage.

Cross-section diagram titled "Basics of Check Valves," showing body, hinge, disk, and seat.

In systems handling pressurised liquids, gases, or multiphase flow, check valves are essential for maintaining directional control and safeguarding critical equipment. When performance begins to degrade, the consequences may not be immediately visible. To maintain pressure stability and avoid unplanned shutdowns, identifying the early signs of check valve failure is critical.

What Are Check Valves?

A check valve is a self-actuating device designed to allow fluid to move in one direction while automatically preventing reverse flow. Unlike isolation or control valves, it operates without external actuation, relying instead on system pressure, flow velocity, or internal spring mechanisms to open and close.

Common configurations include swing, lift, spring-assisted, and dual-plate designs, each selected based on flow characteristics, pressure conditions, and installation constraints. When functioning correctly, a check valve provides passive protection for connected equipment by maintaining flow direction and stabilising pressure behaviour within the system.

Common Signs of Performance Issues in Check Valves

1. Reverse Flow or Backflow

One of the most direct indicators of check valve failure is unintended reverse flow within the system. This condition can expose pumps, compressors, and instrumentation to mechanical stress or contamination.

Possible cause:

The valve disc, plate, or seat may be worn, fouled by debris, or unable to close fully. Erosion, corrosion, or deformation can prevent proper sealing.

What to do:

Conduct internal inspections during planned shutdowns. Maintenance teams should also remove accumulated debris, assess sealing surfaces, and replace components that no longer meet tolerance requirements. Applying structured reverse flow diagnostics can help determine whether the issue originates from valve wear, incorrect orientation, or upstream process instability.

2. Excessive Vibration or Chattering

Persistent vibration or rapid opening and closing of the check valve is another early sign of failure, particularly in high-velocity or variable-flow systems.

Possible cause:

Incorrect cracking pressure or unstable flow conditions can cause the valve to oscillate. This behaviour accelerates internal wear and may lead to fatigue damage in connected piping.

What to do:

Verify operating pressure ranges against valve specifications. Review cracking pressure requirements and installation orientation. In systems with fluctuating flow, non-slam check valves or spring-loaded check valves can help reduce slam and disc oscillation, subject to correct sizing and operating conditions. These designs use controlled closure mechanisms to limit impact forces, improving stability and reducing mechanical wear over time.

3. Unusual Noise During Operation

Abnormal sounds such as banging, clicking, or rattling during flow changes often indicate internal movement that should not be occurring under normal conditions.

Possible cause:

Loose internal components, weakened springs, or misalignment within the valve body can generate noise as parts move unpredictably.

What to do:

Isolate and depressurise the relevant section in line with site procedures, then remove the valve for inspection. Tighten, realign, or replace internal assemblies as required. Addressing unusual noise at an early stage helps prevent escalation into broader performance issues that may compromise overall system reliability.

4. Pressure Drops or Irregular Flow Rates

Unexpected pressure loss or inconsistent flow behaviour may point to partial obstruction inside the valve.

Possible cause:

A damaged or partially stuck disc can restrict forward flow. Scaling, sediment, or foreign material may also impede movement.

What to do:

Clean internal passages and remove deposits to eliminate restrictions that can impede forward flow. Ensure all moving components operate freely so the valve can fully open under normal operating conditions. For higher-capacity lines, a dual-plate check valve may be suitable due to its compact design and fast, balanced closure response. Final selection should consider line size, flow characteristics, and allowable pressure loss.

5. Leakage Around the Valve Body

External leakage is another symptom of check valve failure that can result from gradual seal degradation.

Possible cause:

Ageing gaskets, degraded seals, or cracks in the valve housing can allow fluid to escape under pressure. Leakage can also occur earlier due to improper bolting, gasket selection, thermal cycling, or installation stress.

What to do:

Replace worn seals and gaskets promptly and inspect the valve body for structural damage. If cracks or deformation are detected, full valve replacement is recommended to avoid sudden rupture or safety hazards.

Potential Risks of Faulty Check Valves

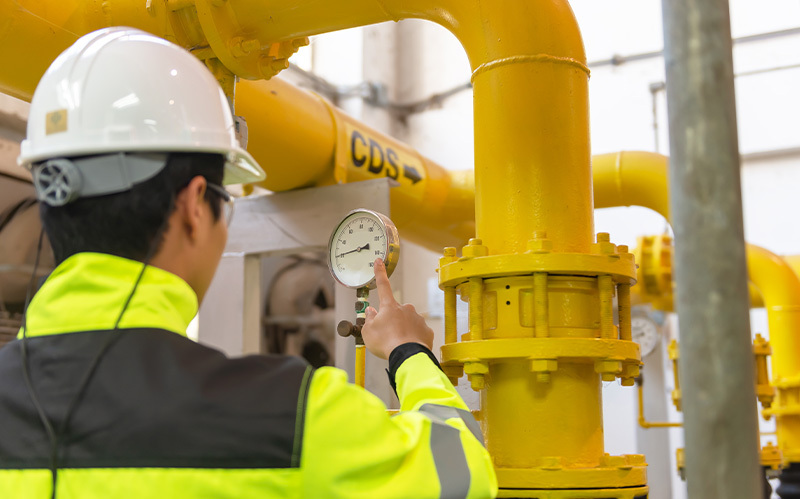

Technician in hardhat and yellow jacket points to a gauge on yellow industrial pipes.

1. Equipment Damage From Reverse Flow

When flow control issues are left unresolved, the effects often extend beyond the valve itself. Reverse flow can expose pumps and compressors to sudden load reversal, increasing the risk of seal damage, bearing wear, or shaft misalignment. In pressurised systems, this may also trigger pressure surges that place additional stress on pipework, flanged joints, and connected fittings.

2. Process Instability and Efficiency Loss

Faulty check valves can disrupt normal flow behaviour, leading to fluctuating flow rates and inconsistent pressure profiles. These conditions reduce overall system efficiency and increase energy consumption as equipment compensates for unintended flow changes. Over time, these issues can accelerate wear on upstream and downstream components.

3. Operational and Safety Risks

Faulty valves increase the likelihood of unplanned shutdowns, particularly during start-up or shutdown sequences when flow conditions change rapidly. Unpredictable valve behaviour during these phases can also introduce safety risks for personnel and complicate operational control, especially in high-pressure or critical service lines.

4. Increased Maintenance and Lifecycle Costs

Secondary damage caused by persistent valve malfunction often results in higher maintenance requirements and shorter equipment service life. Repairing affected pumps, piping, and instrumentation typically incurs greater cost and downtime than addressing the root issue early.

Inspecting and troubleshooting check valves regularly can help reduce these risks. This, in turn, ensures predictable system behaviour and protects critical assets across the operating lifecycle.

Conclusion: Reducing Risk Through Proactive Management

Unchecked degradation of check valves can introduce risks that extend beyond flow control, affecting equipment integrity, process stability, and operational safety. By monitoring early performance indicators and understanding their root causes, engineers and maintenance teams can intervene before minor issues escalate into costly failures.

For organisations seeking technical support, application guidance, or replacement solutions, OTOM Services Pte Ltd provides industrial expertise and equipment solutions tailored to demanding operating conditions. Engaging with an experienced supplier helps ensure that valves and components are correctly specified, installed, and maintained to support long-term operational performance. Contact us to learn more today.

Key Takeaways

Globe valve size plays a central role in balancing flow efficiency with acceptable pressure loss in fluid systems.
Correct sizing improves control accuracy, system stability, and long-term operational reliability.
Considering flow demand, pressure limits, and fluid properties together leads to more predictable performance.

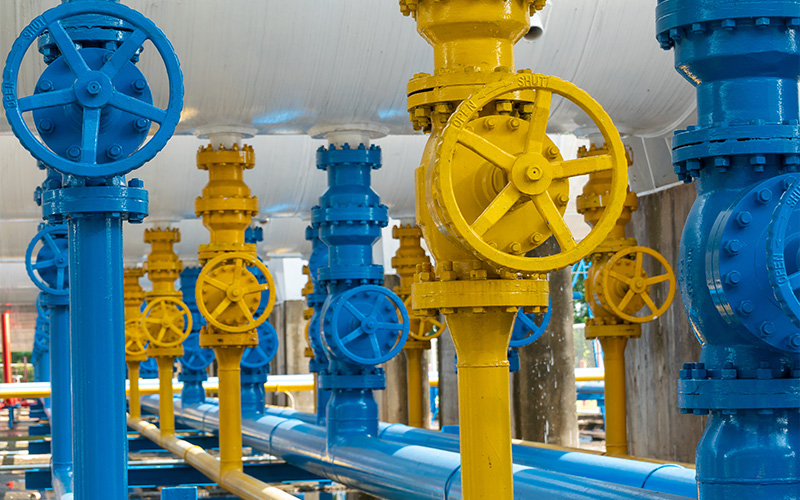

Blue and yellow globe valves installed in industrial piping.

Fluid systems rely on balance, and when the flow is too restricted, pressure builds and efficiency suffers. Conversely, a flow that is too loose leads to unpredictable control. One component that quietly governs this balance is the globe valve, and more specifically, its size. Understanding how globe valve size affects flow efficiency and pressure drop helps operators, engineers, and decision-makers make informed choices that support stable, reliable system performance rather than costly corrections later on.

1. What Are Globe Valves

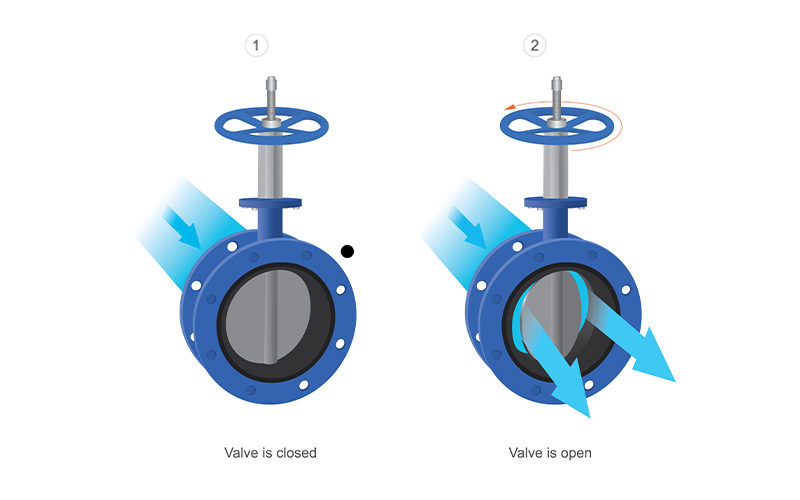

Diagram showing open and closed states of a valve.

Globe valves are control valves designed to regulate fluid flow through precise throttling. Unlike simple on off valves, they allow operators to fine tune how much fluid passes through a system, making them especially useful where stability and accuracy matter.

Their internal structure features a movable plug and a stationary seat. As the plug moves closer to or further from the seat, the opening changes gradually, allowing controlled adjustment rather than abrupt flow changes. This design supports reliable shutoff while also enabling steady modulation.

Because of this, globe valves are widely used in applications that depend on consistent control, including process lines, utilities, and critical service systems. Understanding how globe valve size interacts with this internal mechanism is essential for achieving predictable results.

2. Key Factors Influencing Globe Valve Size

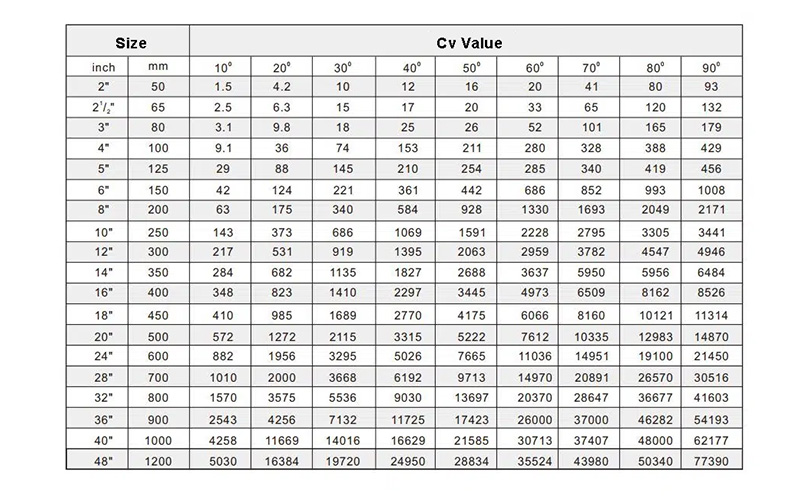

Table showing Cv values for various valve sizes.

Selecting the correct size is not about choosing the largest valve available. It requires balancing several technical considerations so that the valve supports both flow efficiency and pressure stability.

Flow Requirements and Cv Value

Every system has a required flow rate. This demand is translated into a Cv value, which indicates how much fluid can pass through the valve at a given pressure drop. If the valve Cv is too low, flow becomes restricted and pumps work harder. If it is too high, control becomes less precise. A practical valve sizing guide helps match flow demand to the appropriate Cv so the valve operates within its optimal range.

System Pressure and Allowable Pressure Drop

Pressure loss is unavoidable when fluid passes through a valve. However, excessive pressure drop reduces system efficiency and may strain upstream equipment. An undersized valve increases resistance, while an oversized valve often results in unstable control. Choosing the right size means understanding how much pressure the system can afford to lose while still operating reliably.

Fluid Properties

Fluid characteristics such as viscosity, density, and temperature directly influence sizing decisions. Thicker or denser fluids need greater flow capacity to move smoothly through the valve. Temperature changes can alter fluid behaviour and affect valve materials and sealing performance. These factors must be evaluated carefully when determining the most suitable size for a given application.

Control Accuracy Required

Some systems demand very fine modulation, where even small flow changes matter. In these cases, accurate sizing supports smoother throttling and reduces the risk of oscillation. Oversized valves tend to operate near the closed position, which can lead to erratic behaviour and poor responsiveness. Aligning valve capacity with actual operating conditions supports stable control and reinforces sound flow regulation principles.

Why Size Matters in Real Applications

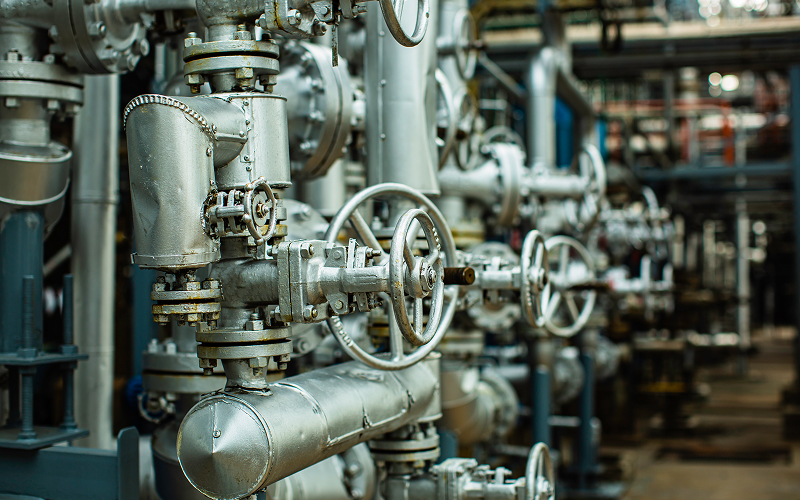

Multiple industrial handwheel valves in a water treatment facility.

In practical settings, globe valves are commonly used as industrial valves in energy, water, manufacturing, and marine systems. In shipboard piping, for example, a correctly sized marine globe valve helps maintain pressure balance across fuel, cooling, or ballast systems, contributing to safer and more efficient operation.

Similarly, specialised designs such as an angle globe valve are used where piping layout or directional flow changes require compact and efficient solutions. In each case, the sizing decision influences not only flow and pressure, but also wear rates, maintenance intervals, and overall system reliability. This highlights why globe valve size should always be considered as part of the wider system design rather than in isolation.

The relationship between globe valve size, flow efficiency, and pressure drop is fundamental to how fluid systems perform. Getting this balance right supports accurate control, protects upstream equipment, and promotes long term operational stability. By evaluating flow requirements, allowable pressure loss, fluid properties, and control expectations together, engineers and operators can make informed sizing decisions that reduce inefficiencies and avoid costly adjustments later.

Here at OTOM Services, we support these decisions by supplying and supporting a wide range of valves and related components for industrial and marine applications. As a trusted valve company in Singapore, we work closely with clients to align technical requirements with practical operating needs, from selection to ongoing support.

For guidance on selecting the right valve for your system and ensuring reliable performance, please contact us today.

Key Takeaways

Gaskets can work together with butterfly valves depending on valve design, flange condition, and operating demands.
Many modern butterfly valves seal effectively without additional components, provided installation is done correctly.
Knowing when to add or avoid a gasket protects sealing performance, safety, and long-term operating costs.

Large, vibrant green industrial pipes with manual valves and bolted flanges located at an outdoor facility.

Butterfly valves are designed to provide efficient flow control across a wide range of systems, from water treatment to marine and industrial applications. Yet one question often crops up during specifications and installations: are gaskets and butterfly valves always meant to be used together? The answer depends on how the valve achieves its seal, the condition of the pipeline, and the operating environment. Understanding these factors helps engineers and project teams avoid leaks, unnecessary damages, and wasted expenses.

Understanding How Butterfly Valves Seal

In most butterfly valves, the valve seat acts as the primary sealing element. Typically made from rubber, elastomer, or PTFE, the seat forms a tight seal when the disc closes against it. This sealing action prevents leakage between the valve body and the pipeline, even under normal operating pressure.

Many modern valves rely on an elastomer seat design where the seat slightly protrudes beyond the valve body. This extension allows the seat to compress directly against the flange faces, performing the same role a traditional gasket would. In these cases, gaskets and butterfly valves do not need to be paired, as the built-in seat already provides an effective seal.

This integrated approach reduces material costs and speeds up assembly. However, sealing performance still depends on proper alignment, correct bolt torque, and clean, undamaged flange faces. Poor installation practices can compromise even the best-designed valve.

When Gaskets Are Required

There are situations where adding a gasket becomes necessary to maintain sealing reliability. Flange type is a key consideration. When butterfly valves are installed between raised-face or flat-face flanges, the valve seat may not always achieve uniform contact across the flange surface. In such cases, engineers may introduce gaskets as part of broader valve flange sealing solutions to ensure even compression.

High-pressure or high-temperature systems also present challenges. Steam lines, chemical processing plants, and offshore installations experience thermal expansion, vibration, and fluctuating loads. These conditions can create micro-gaps that lead to leaks. Using gaskets and butterfly valves together adds an extra sealing layer that helps absorb movement and compensate for minor surface imperfections.

Ageing infrastructure is another factor. Corroded or uneven flanges are common in older systems. Rather than resurfacing or replacing flanges, a gasket can restore sealing capability and extend service life, especially during complex industrial pipeline installations where downtime must be minimised.

When Gaskets Are Not Needed

In many standard installations, gaskets are unnecessary and can even be harmful. Wafer and lug-type butterfly valves often feature an integrated liner that seals directly against the flange faces. Adding a gasket in these cases may lead to over-compression.

Over-compression can damage the valve liner, restrict disc movement, or cause premature wear. This is one reason manufacturers often caution against combining gaskets and butterfly valves unless explicitly required. Following manufacturer guidance is essential, particularly for specialised equipment such as Demco valves, which are engineered with specific seat and flange interface tolerances in mind.

Engineers working with marine valves should be especially careful, as space constraints and exposure to vibration make correct compression critical. In these environments, unnecessary gaskets can create more problems than they solve.

The question of whether gaskets and butterfly valves should be used together has no universal answer. In many modern designs, the valve seat itself provides reliable sealing without additional components. In more demanding or imperfect conditions, a gasket may be the practical choice to maintain system integrity. Understanding valve design, flange condition, and operating demands allows engineers to make informed decisions that balance performance, safety, and cost.

OTOM Services supports engineers and project teams with practical guidance and a broad range of valves and sealing components for industrial and marine applications, including solutions such as RTJ gaskets for high-pressure environments.

If you are evaluating sealing requirements or specifying components for your next project, please contact us to discuss the right approach for your system.

Key Takeaways

A mud pump plays a central role in drilling by keeping fluid moving, pressures balanced, and the drill bit protected.
Its internal components work in a precise cycle to deliver steady, high-pressure flow downhole.
Proper maintenance keeps drilling operations safe, efficient, and predictable over long operating periods.

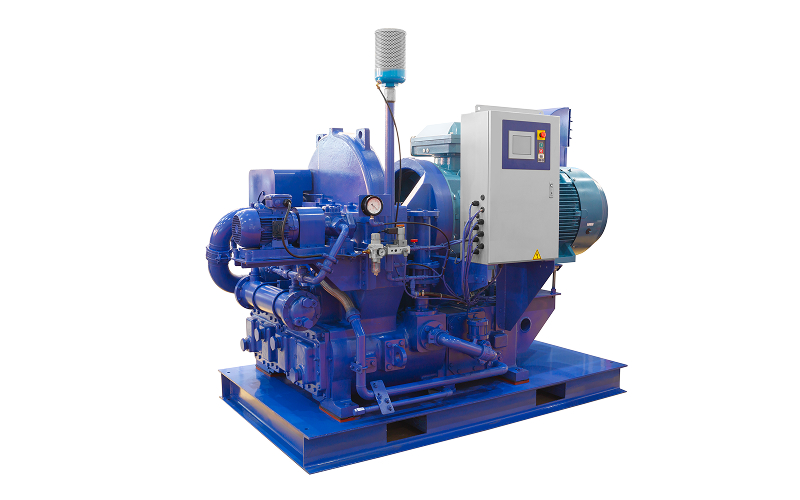

High-pressure industrial mud pump used in oil drilling operations.

A mud pump is often described as the heart of a drilling operation, and for good reason. Without it, drilling would quickly come to a halt. Its main job is to keep drilling fluid moving through the wellbore so that the drill bit stays cool, rock cuttings are removed, and pressure remains under control. While the equipment itself can appear complex, the principle behind its operation is surprisingly straightforward.

Understanding how these pumps work helps explain why it is so critical to safe and efficient drilling, especially in deep or high-pressure environments.

Purpose of a Mud Pump

The primary role of a mud pump is to maintain continuous drilling fluid circulation throughout the well. Fluid is pumped down the drill string, exits at the drill bit, and flows back to the surface through the annulus. This cycle supports several vital functions.

The drilling fluid cools and lubricates the drill bit, reducing heat build-up and mechanical wear. At the same time, it carries crushed rock and debris away from the cutting face, preventing blockages that could destabilise the borehole. Pressure control is another key task. By maintaining the correct hydrostatic pressure, the fluid helps prevent formation fluids from entering the well unexpectedly. This balance is essential for well control and safety.

In simple terms, the pump sustains the hydraulic flow that allows drilling to continue smoothly, even in demanding subsurface conditions.

Core Components and Their Roles

Most drilling rigs rely on a reciprocating pump system, which is designed to deliver high-pressure flow in a controlled and dependable manner. This type of pump is a standard part of modern oilfield equipment, particularly in operations where consistent fluid movement is essential for safety and efficiency.

Each pump consists of two main assemblies that work together to support drilling operations.

Power End

The power end converts rotational energy from the motor into a back-and-forth motion. This section contains the crankshaft, crosshead, connecting rods, bearings, and lubrication system. These parts must withstand continuous mechanical stress, often for extended periods, while maintaining consistent movement.

Fluid End

The fluid end is responsible for handling pressure and direct contact with drilling mud. It houses pistons, liners, and internal valves that control how fluid enters and exits the chamber. Pistons generate the force needed to move mud through the system, while liners provide a wear-resistant surface that protects the pump body and maintains pressure consistency over time.

Flow control across the wider drilling system is often supported by isolation components such as a gate valve, which allows operators to stop or regulate fluid movement during maintenance or system adjustments.

How Valves and Pistons Work Together

Source: Drilling Manual

The pumping cycle operates through a repeating suction and discharge motion. During the suction stroke, the piston retracts, creating a low-pressure zone that draws drilling mud into the chamber. When the piston moves forward, pressure builds and forces the mud out through the discharge pathway.

To maintain directional flow and protect equipment from pressure reversal, downstream systems commonly rely on devices such as a swing check valve. This component automatically closes if flow attempts to reverse, helping to stabilise pressure and reduce mechanical stress within the circulation system.

This coordinated action supports smooth, uninterrupted drilling fluid movement to the bit and back to the surface.

Maintenance and Reliability

OTOM Services technician maintaining drilling equipment in a workshop.

Because drilling operations often run continuously, routine inspection of mud pump components is essential. Valves, pistons, and liners are exposed to abrasive solids and high pressures, which can gradually affect performance if left unchecked.

Sealing integrity also plays a critical role in long-term reliability. High-pressure connections within the fluid system typically rely on precision seals such as an RTJ gasket, which helps maintain tight joints and prevent leakage under extreme operating conditions. Proper installation and timely replacement of these seals contribute to stable pressure control and reduced downtime.

A mud pump is fundamental to drilling operations, driving fluid circulation, protecting the drill bit, and maintaining well control. Its carefully coordinated components work together to deliver reliable performance under demanding conditions. Understanding how it functions highlights why proper maintenance and quality components matter.

OTOM Services supports drilling and industrial operations by supplying valves, gaskets, and related components designed for high-pressure applications. With a focus on dependable solutions and technical support, we are committed to keeping critical systems running smoothly.

Key Takeaways

RTJ gaskets are engineered for demanding environments involving high pressure and elevated temperatures.
Each gasket is designed to match specific pressure ranges, flange designs, and operating conditions.
Correct selection improves sealing reliability, extends equipment lifespan, and reduces unplanned downtime.

Precision-machined steel flanges for industrial RTJ gasket applications.

Ring Type Joint (RTJ) gaskets play a vital role in industrial systems where failure is simply not an option. Designed for extreme pressure and temperature environments, these metal gaskets are commonly used in oil, gas, petrochemical, and marine applications. Understanding the differences between the different types of RTJ gaskets will go a long way in helping engineers, procurement teams, and maintenance planners make informed decisions that protect equipment integrity and operational safety.

Understanding Ring Type Joint Gaskets

A RTJ gasket is a precision-machined metal sealing ring designed to sit within specially grooved flanges. When bolted, the gasket deforms slightly to create a tight seal capable of withstanding severe operating stresses. Compared to soft gaskets, this design delivers consistent metal gasket performance even under fluctuating temperatures and pressures.

These gaskets are commonly found in critical flange connections, including pipelines, pressure vessels, and valves where leakage could lead to safety risks or costly shutdowns. A ring joint gasket relies on exact dimensions and material compatibility to perform as intended, which is why it is important to have a good understanding of the available types of RTJ gaskets.

Types of RTJ Gaskets

1. R-Type RTJ Gasket

Design and Features

The R-type is the most widely used and cost-effective profile amongst RTJ gasket types. Available in oval and octagonal cross-sections, it fits standard flat-bottom grooves and is suitable for pressures of up to approximately 5,000 psi. Its straightforward geometry makes it easy to install and replace during routine maintenance.

Performance and Applications

R-type gaskets are commonly used in refinery equipment, pipeline systems, and pressure vessels operating under stable conditions. They provide reliable sealing without unnecessary complexity, which explains their continued popularity across general industrial services.

Material Options

Common materials include soft iron, low-carbon steel, and stainless steel, selected based on media compatibility and operating temperature.

2. RX-Type RTJ Gasket

Design and Features

The RX-type builds upon the R-type design with a pressure-energised profile. As internal pressure rises, the gasket is driven more firmly into the groove, enhancing sealing efficiency and stability.

Performance and Applications

This design makes the RX type suitable for oilfield equipment and chemical processing systems exposed to pressure cycling and vibration. It is often chosen for environments where thermal expansion and contraction are frequent.

Additional Advantages

RX gaskets are interchangeable with standard R-type grooves, allowing system upgrades without flange modification.

3. BX-Type RTJ Gasket

Design and Features

The BX-type is engineered for extreme service, handling pressures of up to 20,000 psi. Its geometry promotes metal-to-metal contact between flanges after installation, eliminating the risk of gasket extrusion or blowout.

Performance and Applications

BX gaskets are essential for offshore and subsea operations, API 6BX flanges, and critical transmission systems. They are often specified in applications involving marine valves, where absolute sealing integrity is required in corrosive and high-pressure environments.

Material Considerations

Typical materials include Inconel, alloy steel, and high-grade stainless steel for superior corrosion and temperature resistance.

Which Type Should You Choose?

Selecting from the available RTJ gasket types depends on several factors, including pressure rating, flange design, operating medium, and environmental exposure.

R-Type: Suitable for standard pressure systems and general industrial service.
RX-Type: Appropriate for higher-pressure systems with vibration or pressure fluctuations.
BX-Type: Best for ultra-high-pressure, offshore, and subsea applications requiring self-sealing capability.

Careful evaluation ensures the gasket delivers reliable high-pressure sealing solutions throughout its service life.

RTJ gaskets remain a cornerstone of safe and reliable industrial sealing. By understanding how different RTJ gasket types function and where they perform best, operators can reduce leakage risks and maintain system efficiency.

OTOM Services supplies engineered sealing and valve solutions for demanding industrial and marine environments. With a focus on precision components, material compatibility, and application-specific requirements, we support clients across oil, gas, petrochemical, and marine sectors.

Key Takeaways

Lugged and wafer-type butterfly valves differ primarily in mounting method, isolation capability, and mechanical strength.
A lugged-type butterfly valve supports dead-end service and sectional maintenance, making it suitable for more complex systems.
Wafer-type valves prioritise compactness and cost efficiency for fixed, lower-load installations.
Pressure rating, maintenance strategy, and system configuration should guide valve selection.
Correct specification improves long-term reliability across industrial, marine, and petrochemical operations.

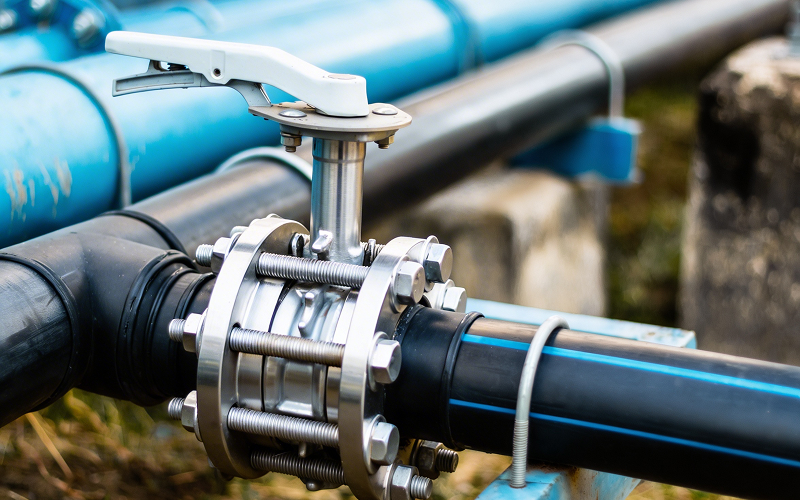

OTOM Services lugged-type butterfly valve for industrial piping systems.

In industrial systems, small design choices often carry long-term operational consequences. Valve selection is one such decision, particularly when comparing wafer and lugged-type butterfly valves. While both designs serve similar flow-control functions, their structural differences influence isolation capability, maintenance planning, and mechanical performance under load.

In this article, we examine the key structural and operational differences between these two types of butterfly valves, helping operators select the most appropriate configuration for their systems.

Lugged Butterfly Valves: Designed for Isolation and Sectional Control

A lugged-type butterfly valve features threaded lugs around the valve body, allowing each side of the pipeline to be bolted independently. This design creates a more rigid connection at the flange connection, improving alignment and mechanical stability under load.

With the valve body actively supporting the pipeline, lugged designs are better able to withstand stressors like vibration, thermal expansion, or uneven loading. This makes them a preferred option in industrial environments where long-term structural integrity is a priority.

Dead-End Service and Maintenance Flexibility

One of the defining advantages of a lugged-type butterfly valve is its ability to support true dead-end service. This allows one side of the pipeline to be disconnected, isolated, or depressurised while the other side remains securely bolted and operational. In practical terms, this capability is essential for systems that require sectional isolation without shutting down the entire line.

In pipeline isolation systems, this design simplifies routine maintenance, inspection, and component replacement. It also supports phased plant expansions or retrofitting work, where new sections are added without disrupting existing operations. For facilities operating under strict safety, uptime, or compliance requirements, the ability to isolate sections reliably reduces both downtime and operational risk during maintenance activities.

Typical Industrial Applications

Lugged butterfly valves are commonly used in applications where mechanical strength, isolation capability, and maintenance access are operational priorities. Typical use cases include:

Industrial processing lines where pipelines are subject to higher mechanical loads, vibration, or thermal expansion.
Chemical handling systems carrying corrosive or pressurised media, where secure bolting and reliable isolation help manage safety and compliance risks.
Marine piping systems, where a robust marine valve is required to withstand vibration, confined installation spaces, and the need for reliable sectional isolation during onboard maintenance.

Wafer-Type Butterfly Valves: Space-Efficient and Economical

OTOM Services industrial butterfly valve installed in a factory.

Wafer butterfly valves are installed by positioning the valve body between two flanges and securing the assembly with through-bolts. The valve body does not include threaded lugs and is held in place by the clamping force generated by the flanges. This design results in a compact, lightweight valve that requires less material and occupies minimal installation space.

Pressure Behaviour and Mechanical Considerations

In wafer-type installations, mechanical loads are transferred primarily through the flange bolting rather than the valve body itself. As a result, these valves are best suited for low- to medium-pressure systems where pipeline alignment is stable and axial loads are limited. Wafer designs are not intended for dead-end service and are typically applied where full line isolation or frequent pipe disassembly is not required.

Common Use Cases in Fixed Pipeline Systems

Wafer-type butterfly valves are commonly applied in systems that prioritise compact design and installation efficiency, including:

Water treatment and distribution networks operating under moderate pressure
HVAC and building services where space constraints influence equipment selection
Auxiliary utility lines, such as cooling water or secondary circulation systems

Key Selection Considerations for Engineers and Operators

1. Functional Role Within the System

Engineers should first assess the role the valve plays within the overall process. Valves intended for boundary isolation, system segmentation, or future tie-ins benefit from lugged configurations, while wafer designs are more appropriate for inline flow control within established, continuous systems. Clarifying whether the valve functions as a control point or a system boundary helps narrow the choice early.

2. Design Margins and Operating Envelope

Valve selection should account for both normal operating conditions and abnormal scenarios such as pressure surges, thermal cycling, or temporary line imbalance during shutdowns. Lugged designs provide greater tolerance where higher safety margins are required, while wafer valves perform effectively within stable, well-defined operating envelopes. Considering these margins upfront reduces the risk of over-specification or premature replacement.

3. Maintenance and Standardisation

Maintenance strategy often drives long-term cost more than the initial purchase price. Facilities with modular maintenance practices or strict isolation procedures tend to standardise on lugged designs to simplify access and reduce shutdown scope. In contrast, plants focused on minimal intervention may standardise wafer valves for uniformity and installation efficiency.

Conclusion: Selecting the Right Butterfly Valve Configuration

Choosing between wafer and lugged-type butterfly valves requires a clear understanding of how each design interacts with the wider system. Installation method, pressure demands, and maintenance planning all influence long-term performance.

For industrial operators in Singapore’s oil, marine, and petrochemical sectors, consider working with an experienced supplier such as OTOM Services Pte Ltd. We provide access to proven valve solutions, including Demco butterfly valves, supported by technical guidance to help ensure correct specification and reliable performance across demanding applications.
