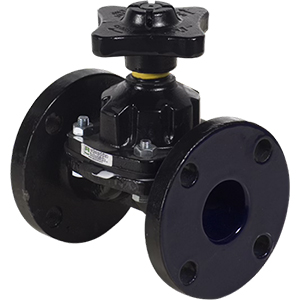

Diaphragm Valve
Diaphragm valves are the ultimate solution for highly corrosive applications, boasting exceptional resistance to abrasion.
They ensure leak-tight shutoff even after countless operations, minimizing emissions and costs.
With an isolated operating mechanism, they maintain reliability in challenging conditions, setting them apart from other valve types.
Their streamlined design enhances flow control, reduces wear, and extends service life, resulting in unmatched longevity.
- Media temperature: -10 to 100 °C
- Ambient temperature: 0 to 60 °C
- Operating pressure: 0 to 10 bar
- Nominal sizes: DN 15 to 150
- Body configurations: 2/2-way body
- Connection types: Flange | Threaded connection
- Connection standards: ANSI | BS | DIN | EN
- Body materials: EN-GJL-250, cast iron material | EN-GJS-400-18-LT, SG iron material | EN-GJS-400-18-LT, SG iron material with hard rubber lining | EN-GJS-400-18-LT, SG iron material, PFA lined | EN-GJS-400-18-LT, SG iron material, PP lined | EN-GJS-500-7, ductile iron material, PFA lined | EN-GJS-500-7, ductile iron material, PP lined
- Body lining: Hard rubber | PFA | PP
- Diaphragm materials: CR | EPDM | FKM | NBR | PTFE/EPDM | PTFE/FKM | PTFE/PVDF/EPDM
