Key Takeaways

• When it comes to gate valves vs globe valves, understanding their core differences can help engineers choose the right solution for efficiency and reliability.
• Gate valves suit simple on off duties, while globe valves excel at precise flow regulation.
• Correct valve selection supports safer operation in high-pressure pipeline systems and reduces long-term maintenance needs.

---

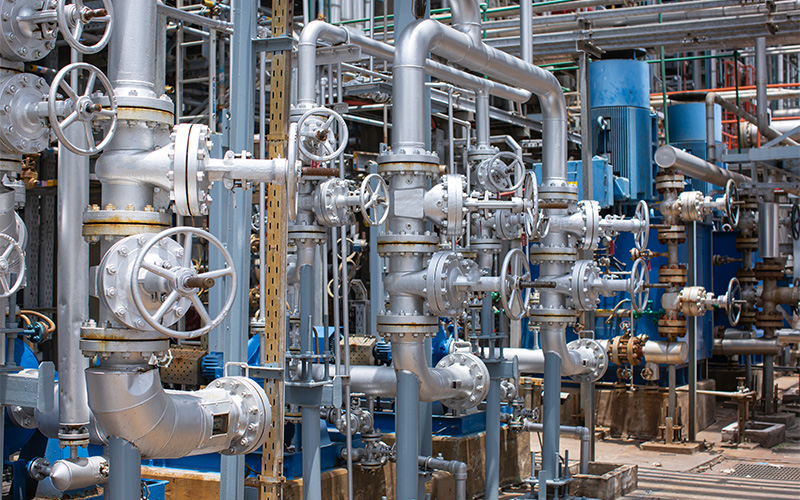

Selecting the right valve can involve numerous factors, especially when the system must operate safely, consistently, and cost effectively. More often than not, the dilemma falls to gate valves vs globe valves, two of the most widely used industrial options. By understanding their distinct strengths, how they work and where they perform best, you can make informed decisions that support smooth operations and fewer disruptions.

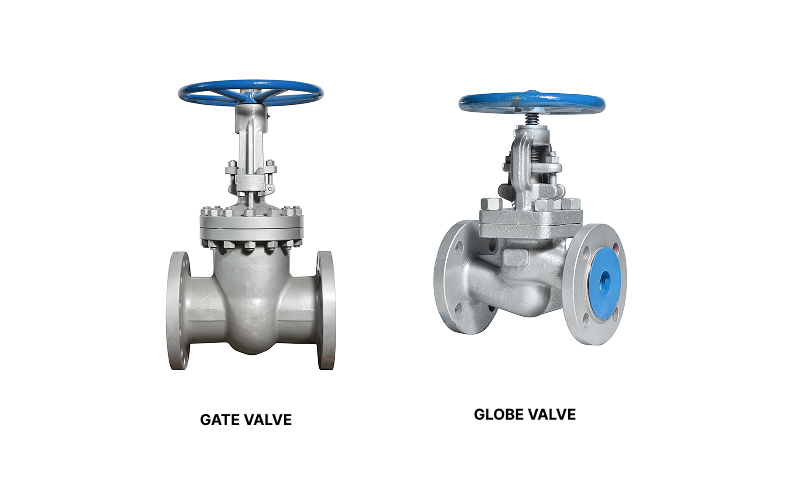

1. Design and Operation

At a glance, gate and globe valves may look similar, yet their internal designs differ significantly.

Gate valves use a flat or wedge-shaped disc that moves vertically up and down. When the gate is fully raised, flow passes straight through with little obstruction. When lowered, the gate blocks the flow completely. This simple motion makes gate valves easy to understand and operate, particularly in systems where the valve remains either fully open or fully closed for long periods.

Globe valves, on the other hand, rely on a plug and seat mechanism. The flow path changes direction inside the valve body, allowing the plug to move closer to or further from the seat. This structure enables finer control over how much fluid passes through, making globe valves a key component amongst process control valves used in regulated environments.

2. Flow Control Characteristics

Flow behaviour is often the deciding factor when considering gate valves vs globe valves.

Gate valves are ideal for on/off control. Because the flow path is straight when the valve is open, pressure loss is minimal. This characteristic is especially useful in long pipelines where maintaining flow efficiency matters. However, gate valves are not designed for throttling. Using them partially open can cause vibration and wear.

Globe valves are built for accuracy. Their design allows operators to adjust flow rates gradually and precisely. This makes them suitable for applications requiring careful isolation and regulation, such as dosing, temperature control, or balancing flows within a system. The trade off is a higher pressure drop compared to gate valves, due to the more complex internal flow path.

3. Pressure and Maintenance Considerations

Pressure conditions and maintenance expectations also influence valve selection.

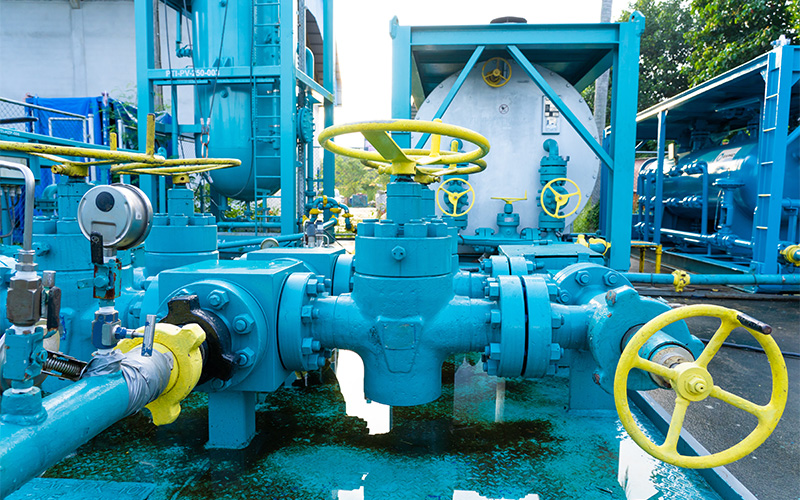

Gate valves provide full-bore flow, meaning the internal diameter matches the pipeline. This reduces turbulence and simplifies inspection and cleaning, particularly in clean service environments. In demanding applications, options like a Demco gate valve are often selected for their robust construction and suitability for large diameter lines.

Globe valves are better equipped to handle higher pressure differentials. Their seat and plug arrangement can withstand significant pressure changes, but this precision comes at a cost. The seats experience more wear over time, so globe valves may require more frequent inspection and servicing to maintain performance.

4. Industrial Applications

Each valve type has found its place across industries.

Gate valves are commonly used in pipelines, oil and gas installations, and water treatment plants. Their main role is isolation, allowing sections of a system to be shut off safely for maintenance or emergencies. For buyers comparing options from various gate valve suppliers, ease of operation and compatibility with existing pipework often guide the final choice.

Globe valves appear more often in chemical processing, power generation, and marine environments. In shipboard systems, a marine globe valve is valued for its ability to control flow accurately despite changing pressures and operating conditions.

---

Ultimately, the gate valve vs globe valve debate is not about finding a better or worse option, but matching each valve design to your operational needs. Gate valves offer simplicity, low pressure loss, and reliable isolation. Globe valves provide precision, control, and stability under fluctuating pressures. Understanding these differences helps engineers and operators build systems that are safer, more efficient, and easier to maintain.

At OTOM Services, we support industrial clients by supplying dependable valve solutions and technical guidance tailored to real world applications. From selection to sourcing, our team focuses on practical performance and long-term value.

To discuss your requirements or clarify the right valve choice for your system, please contact us today.

Key Takeaways

• Globe valves are designed to manage flow and pressure with precision across a wide range of systems.
• Each type of globe valve serves distinct industrial applications, depending on efficiency, layout, and operating demands.
• Selecting the right globe valve depends on understanding flow direction, pressure demands, and overall system needs.

---

Globe valves play a central role in many engineered systems, particularly where accurate flow control and reliable shutoff are required. Their internal design allows operators to fine-tune how fluids move through a pipeline, making them a trusted choice across sectors that depend on consistency and safety. This guide explores the main types of globe valves available today and explains how each design supports different operating requirements.

T-Pattern (Z-Type) Globe Valve

The T-pattern globe valve, often called the Z-type, is the most widely used design. Its internal structure forces the fluid to change direction twice as it passes through the valve, creating a pressure drop that supports precise throttling. This makes it especially useful in systems that experience high-pressure drops or require frequent adjustment.

Engineers often choose this design for applications where tight shutoff is essential. Although the flow path is not the most efficient, the control it offers makes it a dependable option for regulating flow in demanding environments. Amongst common types of globe valves, this design is often the starting point for general-purpose use.

Y-Pattern Globe Valve

The Y-pattern globe valve is designed to reduce resistance within the system. By angling the stem and seat at roughly 45 degrees, the valve allows fluid to pass through with fewer directional changes. This results in lower pressure loss compared to the T-pattern design.

This valve is well suited to high-temperature or high-pressure lines where efficiency matters. It balances control with improved flow performance, making it a practical solution when system energy loss must be kept in check.

Angle Globe Valve

Angle globe valves change the direction of flow by 90 degrees within the valve body. This design removes the need for an external elbow in the piping layout, which can simplify installation and reduce potential leak points.

These valves are commonly found in marine systems and wastewater treatment facilities, where space constraints and layout simplicity are important. As part of modern valves for flow control, angle globe valves help streamline piping without compromising regulation accuracy.

Straight Flow Globe Valve

Straight flow globe valves are designed to offer a more direct passage for fluid. Their internal layout minimises turbulence, making them suitable for clean fluids that require steady movement with moderate throttling.

This design supports fluid regulation systems where maintaining flow quality is as important as control. Amongst the various types of globe valves, straight flow designs are often selected for systems that prioritise reduced obstruction while still allowing measured adjustment.

Pressure-Sealed Globe Valve

Pressure-sealed globe valves are built for extreme environments. Instead of relying on traditional bolted bonnets, they use internal pressure to enhance sealing as operating pressure increases. This makes them highly reliable in power generation and refining contexts.
These valves are selected based on strict process conditions, where safety and durability are non-negotiable. Proper valve configuration in such systems ensures long-term performance under intense thermal and mechanical stress.

---

Understanding the differences between globe valve types helps engineers and operators make informed decisions that support efficiency, safety, and system longevity. Each design serves a distinct purpose, from handling pressure variations to simplifying piping layouts. Selecting the right valve requires a clear understanding of system demands, operating environments, and performance expectations.

Here at OTOM Services, we support clients with sourcing, specification, and technical guidance for industrial valve solutions across diverse sectors. As a trusted valve company in Singapore with extensive experience in matching valve designs to real-world operating needs, we help ensure reliability at every stage of system operation.

Contact us today to discuss your requirements and explore solutions tailored to your application.

Key Takeaways

• Gate and check valves serve fundamentally different roles in industrial fluid systems, making correct selection critical to safety, reliability, and performance.
• Gate valve vs check valve decisions should be based on control intent versus protection needs, not interchangeability.
• Gate valves support deliberate isolation, making them essential in pump-driven and pressurised systems.
• Check valves respond automatically to flow reversal and transient conditions, reducing pressure-related stress and equipment damage.
• Using these valves together in specific configurations improves system resilience, combining operational flexibility with automatic protection.

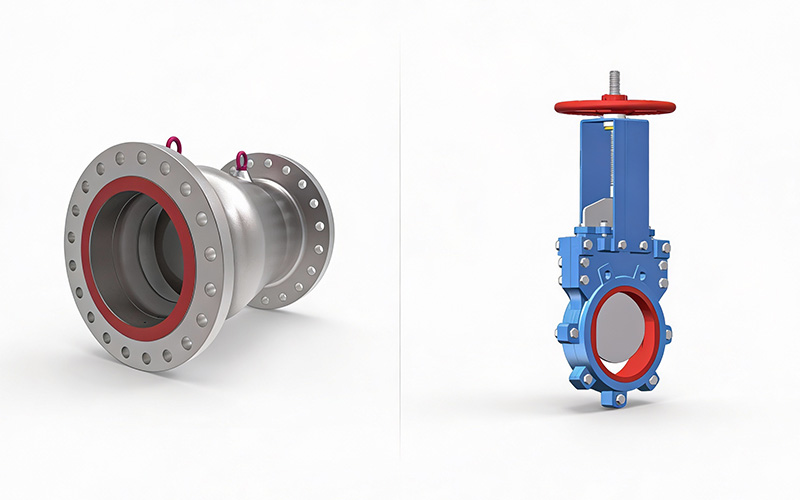

Gate and check valves are both widely used in industrial fluid piping systems, but they differ in terms of function, operation, and application. This article provides a detailed gate valve vs check valve comparison, examining how each component controls flow, responds to pressure changes, and fits into different system configurations.

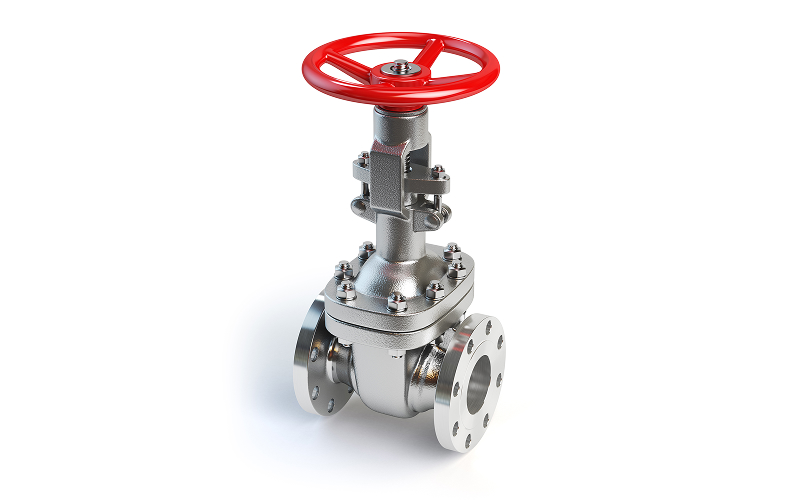

What Are Gate Valves and Check Valves?

A gate valve is a manually operated valve used primarily for flow isolation. It controls flow by raising or lowering a solid gate perpendicular to the flow path. When fully open, it provides a straight-through passage with minimal pressure loss, making it suitable for applications where unobstructed flow and positive shut-off are required.

A check valve is an automatic valve designed to prevent reverse flow. It opens under forward flow conditions and closes when flow slows or reverses, protecting upstream equipment from backflow-related damage. Different types of check valves are available to suit varying pressure, flow, and installation requirements. For example, swing-check valves use a hinged disc that responds quickly to changes in flow direction, making them common in pump discharge applications.

The Key Gate Valve vs Check Valve Difference: Control vs Automatic Protection

The primary distinction in gate valve vs check valve selection lies in how each valve manages system control and protection.

Gate valves are designed for deliberate, operator-controlled actions. They are used when flow must be intentionally started, stopped, or isolated, such as during planned shutdowns, sectional pipe isolation, or commissioning activities. Their operation depends on manual or mechanical actuation, making them suitable for predictable operating conditions where response time is not critical.

Check valves serve a fundamentally different purpose. They provide automatic protection by responding directly to changes in flow direction and pressure. When forward flow is interrupted or reverses due to events such as pump trips, pressure imbalance, or sudden stoppage, the check valve closes immediately without requiring operator input. This pressure-driven response helps reduce the effects of sudden flow reversal and pressure transients without relying on operator intervention.

Combining Gate Valves and Check Valves in Fluid Systems

In many industrial systems, gate valves and check valves are used together to provide both operational control and automatic protection.

Typical Configuration

A common arrangement places the check valve closest to the pump, with a gate valve installed downstream. This allows rapid response to flow reversal while enabling operators to isolate the line for inspection or maintenance without draining the entire pipeline.

Placing the isolation valve downstream also reduces the risk of operational damage. If the gate valve is closed inadvertently, this configuration limits stress on the check valve, supporting longer service life and more stable system performance.

Flexible Adjustments for Specific Operating Conditions

Although placing the check valve upstream of the gate valve is common practice, real-world operating conditions may require different sequencing. Examples include:

1. High-Pressure or High-Temperature Services

In steam or thermal systems, gate valves may be positioned upstream to withstand initial pressure and temperature exposure, helping to protect downstream components from excessive mechanical stress.

2. Parallel Pump or Multi-Pump Header Systems

Each pump outlet is often fitted with its own gate valve so that individual pumps or check valves can be isolated for maintenance without causing reverse flow through adjacent lines.

3. Restricted or Compact Installations

In offshore modules, marine engine rooms, or tightly packed skids, valve placement may be adjusted to suit space constraints. Any deviation from standard layouts should be supported by hydraulic modelling and analysis to confirm acceptable pressure behaviour and system safety.

The Critical Importance of Correct Valve Selection

A clear understanding of gate valve vs check valve differences is essential for maintaining reliable and safe fluid systems. Gate valves provide deliberate isolation and operational control, while check valves deliver automatic protection against reverse flow and pressure-related damage. When specified correctly and used together where appropriate, they help reduce equipment stress, minimise operational risk, and support long-term system stability in demanding industrial environments.

Working with experienced check and gate valve suppliers enables project teams to translate these technical considerations into practical, application-appropriate valve solutions. At OTOM Services Pte Ltd, we offer accurate specification, dependable sourcing, and post-sales support for critical flow control components across various sectors.

Contact us today.

Key Takeaways

• Gaskets and seals are designed for different mechanical roles and are not interchangeable within industrial systems.
• Gaskets are used in static connections where sealing is achieved through sustained compression, while seals are required for dynamic interfaces involving movement.
• Once the sealing type is established, operating pressure, temperature, process media, and duty cycle guide design and material selection.
• Correct specification of sealing components helps reduce leakage risk and extend equipment service life. This supports safe, reliable operation in demanding industrial environments.

Introduction

When industrial systems experience leaks or pressure instability, the root cause often lies at the sealing point. Two common components used to address these issues are gaskets and seals. While both types of industrial sealing technology are designed to prevent fluid escape and maintain system integrity, they serve different mechanical functions and are engineered for different operating conditions.

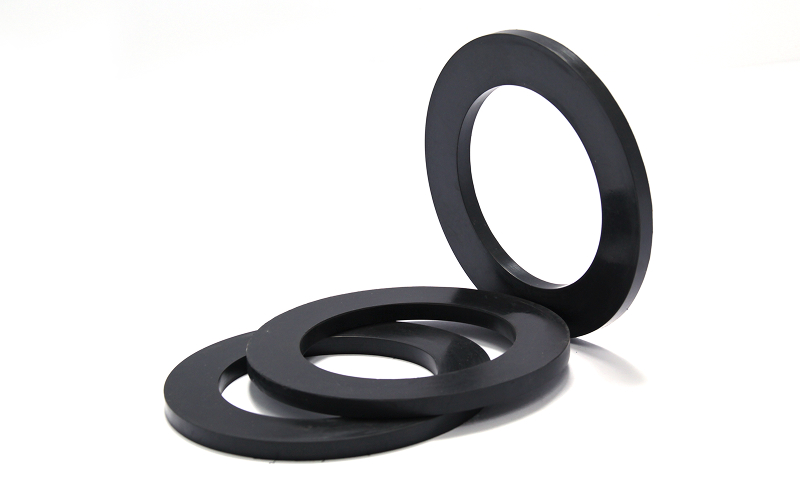

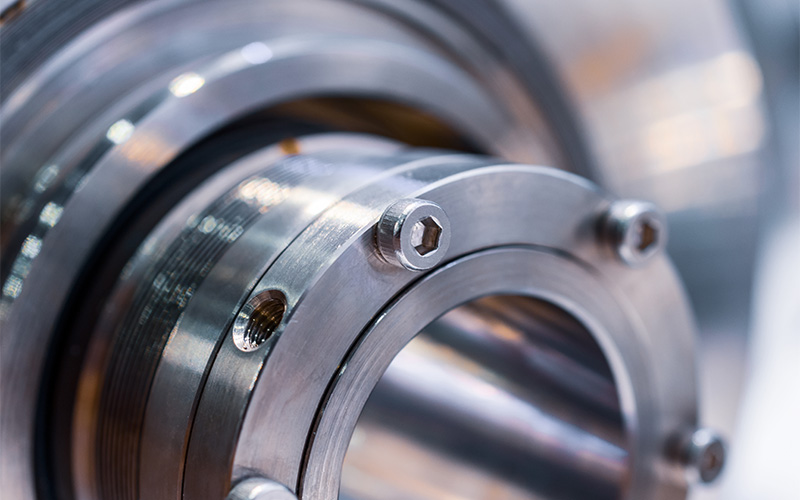

What Are Gaskets?

Gaskets are mechanical sealing elements installed between two stationary mating surfaces. Their role is to create a pressure-tight seal once the joint is compressed, compensating for surface irregularities. Since there is no relative movement after installation, gaskets are designed to withstand sustained compressive loads over long periods.

Common applications of gaskets include:

• Pipe flange connections in process piping systems
• Valve bonnets, covers, and inspection ports
• Heat exchangers and pressure vessels

Gaskets are typically used when reliability under pressure and temperature is critical. As such, they are often found in industries like oil and gas production, marine engineering, power generation, and chemical processing.

What Are Seals?

Seals are designed to maintain containment between components that experience relative motion during operation. As such, they must be able to accommodate rotation, reciprocation, or oscillation while controlling friction, wear, and heat generation.

Common applications of seals include:

• Rotating shafts in pumps and compressors
• Hydraulic and pneumatic cylinders
• Gearboxes and rotating equipment
• Mechanical assemblies

Industries such as oilfield services, marine operations, manufacturing, and petrochemical processing rely on seals to ensure long-term operational efficiency.

How to Choose the Right Gaskets and Seals

Choosing between gaskets and seals is fundamentally about understanding how the interface behaves during real operation. The following factors influence not just performance, but also reliability, maintenance demands, and failure risk.

The Main Differentiator: Static and Dynamic Sealing

The most decisive factor is whether the joint remains stationary or experiences movement during operation. Gaskets are selected for interfaces that are fixed once assembled, such as flanged pipe joints, valve covers, or pressure vessel closures. On the other hand, seals are required where components move relative to each other, such as rotating pump shafts or reciprocating hydraulic rods. Misidentifying the interface type often leads to early failure.

Factors Affecting Gasket and Seal Materials

After the nature of the interface determines whether a gasket or a seal is suitable, the specific design and material selection are influenced by operating pressure, temperature range, process media, and duty cycle.

1. Operating Pressure and Load Profile

Operating pressure influences how gaskets and seals resist deformation and maintain contact over time. In static joints, higher pressures increase the risk of gasket extrusion or blowout if the material cannot sustain the required compressive load. For example, high-pressure flange connections often specify a metal ring gasket designed to withstand extreme loads. In dynamic applications, elevated pressure increases contact forces at the sealing interface, which can accelerate wear if the seal design is not pressure-balanced.

2. Temperature Range and Thermal Cycling

Materials are selected based on their ability to maintain sealing behaviour across the full operating temperature range. Repeated heating and cooling can reduce gasket compression due to creep or relaxation, particularly in systems that cycle frequently. In such conditions, metallic ring-type joint (RTJ) gaskets are often used, as they rely on controlled plastic deformation to maintain sealing integrity at elevated temperatures.

In dynamic systems, elevated temperatures can increase friction and harden seal materials, leading to faster wear. To address this, seals made from materials with high thermal stability, low friction characteristics, and resistance to hardening are typically specified.

3. Process Media and Chemical Compatibility

Gaskets and seals must remain stable when exposed to the process media over extended periods. This is particularly relevant in systems handling hydrocarbons, solvents, or corrosive fluids. In static joints, chemical interaction can degrade gasket materials, reducing their ability to sustain compression. In dynamic systems, media properties such as lubricity or abrasiveness directly affect seal wear and friction.

4. Duty Cycle and Service Life Expectations

How often a system operates, and under what conditions, directly affects the longevity of sealing components. Static joints designed for long-term service may prioritise gasket materials that resist creep and maintain sealing stress over extended periods. For dynamic applications, the duty cycle has an even greater impact, as seals are subjected to continuous rotation, frequent start-stop cycles, or variable speeds. This is why seals with higher wear resistance, stable geometry, and predictable service life are selected to reduce unplanned downtime.

From Specification to Performance: Getting Sealing Right

Gaskets and seals play different but equally critical roles in maintaining system integrity. Selecting the appropriate sealing solution requires an understanding of how the interface behaves over time, particularly under thermal cycling, pressure fluctuations, and continuous operation. Getting this decision right helps minimise unplanned shutdowns, protect personnel and equipment, and maintain consistent process performance in demanding industrial environments.

To ensure consistency and reliability across your operations, work with OTOM Services Pte Ltd. We offer a comprehensive range of industrial components, including gaskets, seals, marine valves, oilfield equipment, and related accessories, supporting industrial applications with dependable supply and technical expertise. Speak with our team today.

Key Takeaways

• Ball valves vs needle valves differ in terms of how they regulate flow, the level of control they provide, and the types of industrial systems they are designed to support.
• Ball valves are best suited for fast shutoff, isolation, and low-restriction flow in mainline and marine systems.
• Needle valves provide precise, incremental flow control and are preferred for metering, calibration, and high-pressure instrumentation.
• Pressure rating, control accuracy, operating frequency, and maintenance expectations should guide decisions.
• Matching valve design to system requirements improves reliability, reduces wear, and supports long-term operational performance.

Valves play a critical role in determining how fluids are isolated, regulated, and measured. Among the many types available, the distinctions between ball valves and needle valves are particularly important due to their fundamentally different approaches to industrial flow control. While both are widely used across oilfield, marine, and petrochemical environments, their internal design, operating characteristics, and performance limits make them suitable for very different applications.

Ball Valves vs Needle Valves: Key Differences

1. Operational Design and Functionality

The core difference between ball and needle valves lies in their internal design. Ball valves employ a drilled spherical ball that rotates 90 degrees to align or block the flow path. This quarter-turn mechanism enables rapid, full-bore opening or closure, making ball valves ideal for isolation duties where swift response is required.

In variants such as a 3-way ball valve, the same design principle is extended to allow flow diversion or mixing between multiple ports. This provides operational flexibility while maintaining fast actuation and reliable sealing.

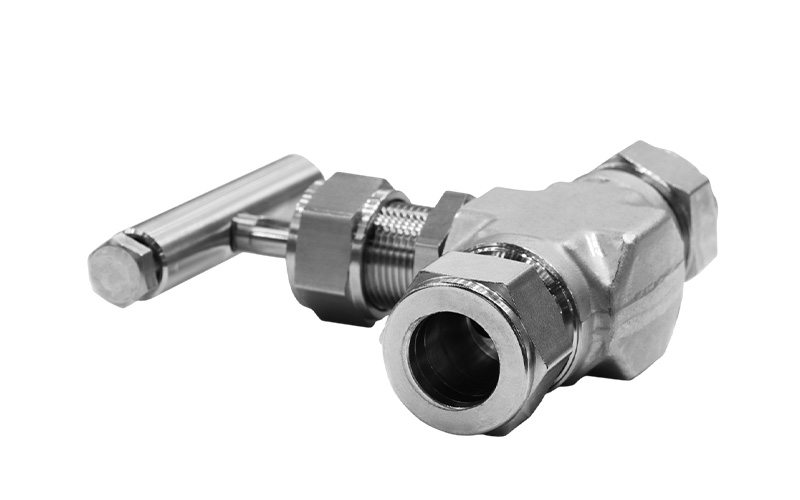

Needle valves, by contrast, use a finely threaded stem and a tapered needle that seats into a narrow orifice. Flow is adjusted through multiple turns of the stem, allowing incremental changes. This design prioritises control resolution over speed and is fundamental in applications like pressure sensing, flow measurement, and analytical sampling, where even small flow variations matter.

2. Flow Control and Accuracy

When comparing ball valves vs needle valves, flow control accuracy is a decisive factor. Needle valves offer superior modulation, enabling operators to fine-tune flow rates with high repeatability. This makes them particularly effective in metering lines, sampling systems, and calibration circuits.

On the other hand, ball valves are not designed for throttling. While they provide unrestricted flow when fully open, partial opening can lead to turbulence, seat wear, and inconsistent control. Their strength lies in on-off service rather than precise regulation, which is why they are commonly used in systems prioritising throughput over adjustability.

3. Pressure and Temperature Capability

Needle valves are typically engineered to handle higher pressures and, in many cases, elevated temperatures. Their robust stem design and tight seating geometry allow reliable performance in hydraulic systems, high-pressure instrumentation lines, and testing rigs.

Ball valves perform best under moderate pressure and temperature ranges where tight shutoff and minimal pressure drop are required. Variants such as the flanged ball valve are widely used in industrial piping systems, featuring bolted flange connections that provide a secure, leak-resistant joint and improved structural stability.

4. Maintenance and Service Life

Ball and needle valves also differ in their maintenance considerations and service life. Ball valves are generally low-maintenance components with fewer moving parts exposed to wear. Their simple design supports long service life in general industrial environments, provided they are operated within specification.

Needle valves require more careful handling. The precision-machined needle and seat are susceptible to damage from particulate contamination or improper operation. Regular inspection and controlled actuation are necessary to maintain performance, especially in high-pressure or critical measurement systems.

Differences in Industrial Applications and Use Cases

Given their operational, control, and performance differences, ball valves and needle valves are suited to different applications within industrial systems.

Ball valves are typically used where:

• Rapid shutoff or isolation is required, particularly in mainline and emergency isolation points
• Full-bore flow with minimal pressure drop is critical to system efficiency
• Durability and low maintenance are needed in continuous industrial service

Common use cases include pipeline isolation, chemical processing systems, and marine valve installations

Needle valves are typically used where:

• Precise, incremental flow control is required rather than on-off operation
• Small flow volumes must be regulated accurately over a wide pressure range
• Controlled pressurisation is necessary to protect downstream components

Common use cases include laboratory and analytical setups, instrumentation and sampling lines, and hydraulic and pneumatic control systems.

Conclusion: Aligning Valve Selection with Operational Demands

Selecting the right valve is a strategic engineering decision that impacts system performance over time. Comparing the characteristics and functions of ball valves vs needle valves allows engineers and procurement teams to effectively balance control accuracy, durability, and operating conditions.

For operators in Singapore’s oilfield, marine, and petrochemical sectors, partner with an experienced supplier like OTOM Services Pte Ltd to strengthen both specification accuracy and supply reliability. With our technical expertise, application-specific guidance, and industry-proven valve solutions, we help businesses reduce mis-specification risks, shorten procurement cycles, and support consistent system performance.

For more information about what we do, contact us today.

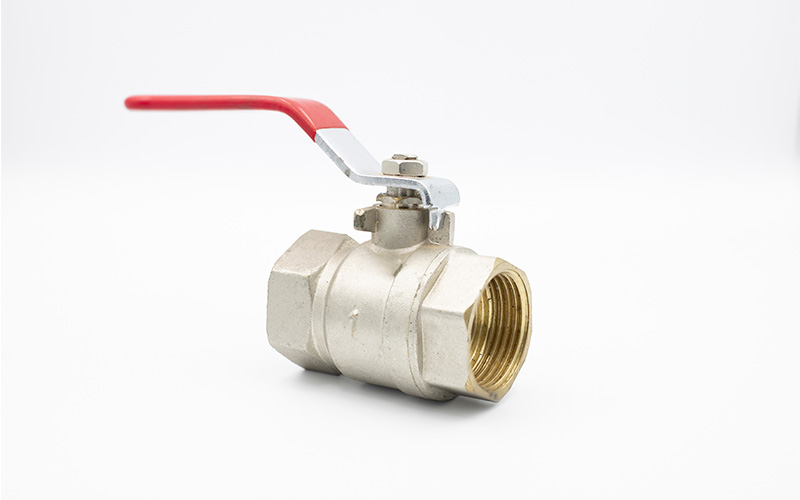

Key Takeaways

• The decision between 1-piece vs 2-piece ball valves should be driven by serviceability needs, leak risk tolerance, and lifecycle expectations rather than unit cost alone.
• 1-piece ball valves minimise external leak paths and suit straightforward isolation duties where internal access is not required.
• 2-piece ball valves allow internal inspection and seal replacement, making them better suited for systems where planned maintenance is part of operations.
• 3-piece ball valves serve a different role, supporting frequent cleaning or component replacement without removing the valve from the pipeline.
• Effective valve selection aligns design configuration with process criticality, access constraints, and long-term maintenance planning.

Ball valves are widely used in pressurised fluid handling systems where fast operation and dependable shut-off are critical. While these valves are available in several designs, a common discussion centres on 1-piece vs 2-piece ball valves and which configuration best aligns with maintenance access, lifecycle cost, and system criticality.

This article provides a technical comparison of 1-piece vs 2-piece ball valves, examining differences in body construction, serviceability, and typical use cases.

1-Piece vs 2-Piece Ball Valves: Key Differences

1. Body Construction and Leak Path Considerations

The most fundamental difference between the two types of ball valves lies in their body construction and configuration.

A 1-piece ball valve is manufactured as a single, monolithic body. With no body joints or bolted connections, the design inherently minimises external leak paths. This makes 1-piece valves ideal for low-risk services where simplicity and compactness are priorities. Fewer joints also reduce the potential for loosening under vibration or thermal cycling.

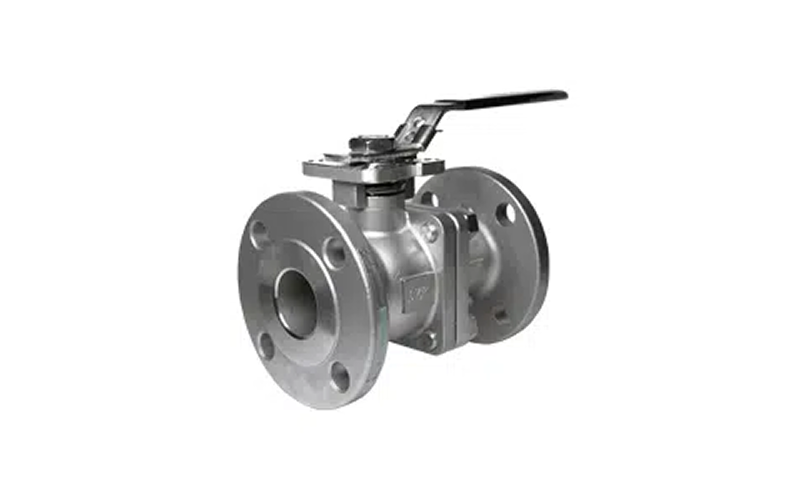

In contrast, a 2-piece ball valve consists of a main body and a threaded or bolted end cap. This introduces an additional body joint that must be sealed effectively. While modern machining and gasket technologies significantly reduce the risk of leakage, the joint remains a design consideration in higher-pressure or safety-critical systems.

2. Serviceability and Maintenance Implications

1-piece ball valves are not designed to be disassembled, and their internal components, such as seats and seals, are permanently enclosed within the body. As a result, these valves are typically treated as disposable components. However, in cases where internal wear, erosion, or contamination affects shut-off performance, replacement is often the most practical solution rather than repair.

By comparison, 2-piece ball valves allow one body section to be removed, providing access to the ball, seats, and seals. This design supports inspection, cleaning, or seal replacement in principle, although in many real-world installations, the valve may still need to be removed from the line to carry out maintenance safely and effectively.

Even so, the ability to service internal components generally supports a more structured valve maintenance approach, making 2-piece valves better suited to mid-criticality services where planned intervention is preferable to full replacement.

3. Cost, Weight, and Space Considerations

1-piece valves are generally lighter, more compact, and lower in unit cost. Their reduced material usage and simpler manufacturing process make them economical for utility services, secondary lines, and non-hazardous media. Additionally, their compact form also benefits installations with limited space, such as skid-mounted equipment.

On the other hand, 2-piece ball valves are slightly heavier and more expensive due to additional machining and sealing components. However, this incremental cost is often offset by longer service life and reduced replacement frequency in demanding environments.

In applications involving larger line sizes or higher pressure ratings, 2-piece designs are more commonly supplied as flanged ball valves. These support improved load distribution, installation stability, and alignment control in rigid piping systems.

4. Performance and Safety Requirements

When evaluating the performance of 1-piece vs 2-piece ball valves, safety and compliance requirements should be considered alongside mechanical design.

For services involving hydrocarbons, elevated temperatures, or fire exposure, specifications may call for a fire-safe ball valve design. These valves are engineered with fire-resistant sealing features and a secondary sealing mechanism (often involving metal-to-metal sealing surfaces and fire-resistant stem sealing) to limit leakage and maintain shutoff capability if primary soft seats are damaged by heat.

Similarly, applications requiring flow diversion or multi-port control often extend beyond standard 2-way valves. In these cases, configurations such as a 3-way ball valve are typically produced in multi-piece constructions, which support precise internal porting, assembly, and, where required, service access.

Where Does a 3-Piece Ball Valve Fit In?

In addition to 1-piece and 2-piece ball valves, 3-piece designs occupy a different role. They consist of two end caps and a removable central body section, allowing the entire internal assembly to be removed while the end connections remain fixed in the pipeline. For systems that demand frequent cleaning, inspection, or component replacement, this configuration significantly reduces maintenance time and line disturbance.

Industries with strict cleanliness or contamination controls, such as chemical processing or hygienic fluid handling, often favour 3-piece valves for this reason. The modular design also supports a wider range of seat materials and seal options, enabling precise matching to media compatibility and operating conditions.

However, the added complexity, size, and cost often mean that 3-piece valves are typically reserved for specialised duties rather than general isolation.

Conclusion: Selecting the Right Ball Valve for Long-Term Reliability

The distinction between 1-piece, 2-piece, and 3-piece ball valves is most relevant at the specification stage, where design choices directly influence risk exposure, maintenance access, and long-term performance. Each configuration serves a different operational profile, and evaluating these differences early helps ensure valve selection remains aligned with system demands throughout its service life.

Working with an experienced supplier such as OTOM Services allows technical requirements to be addressed upfront, ensuring specifications are appropriate for operating conditions and supported by dependable product knowledge. With extensive experience supporting complex industrial systems, we provide practical guidance on valve selection, standards compliance, and application-specific considerations across a wide range of operating environments.
