Swing Check Valve—Reliable Backflow Prevention for Industrial Systems

A swing check valve is a mechanical valve designed to prevent reverse flow in piping systems, allowing fluid to move in only one direction. It operates using a hinged disc that opens with forward flow and automatically closes when flow stops or reverses, helping to protect equipment and maintain system integrity.

Swing check valves are commonly used where steady flow conditions are expected and minimal pressure drop is preferred. Their simple, self-acting design makes them suitable for a wide range of applications, including water treatment facilities, oil and gas systems, HVAC networks, and general industrial piping.

OTOM Services supplies swing check valves built for industrial operating conditions, supporting clients with dependable valve solutions that align with system requirements and industry standards.

Enquire Now

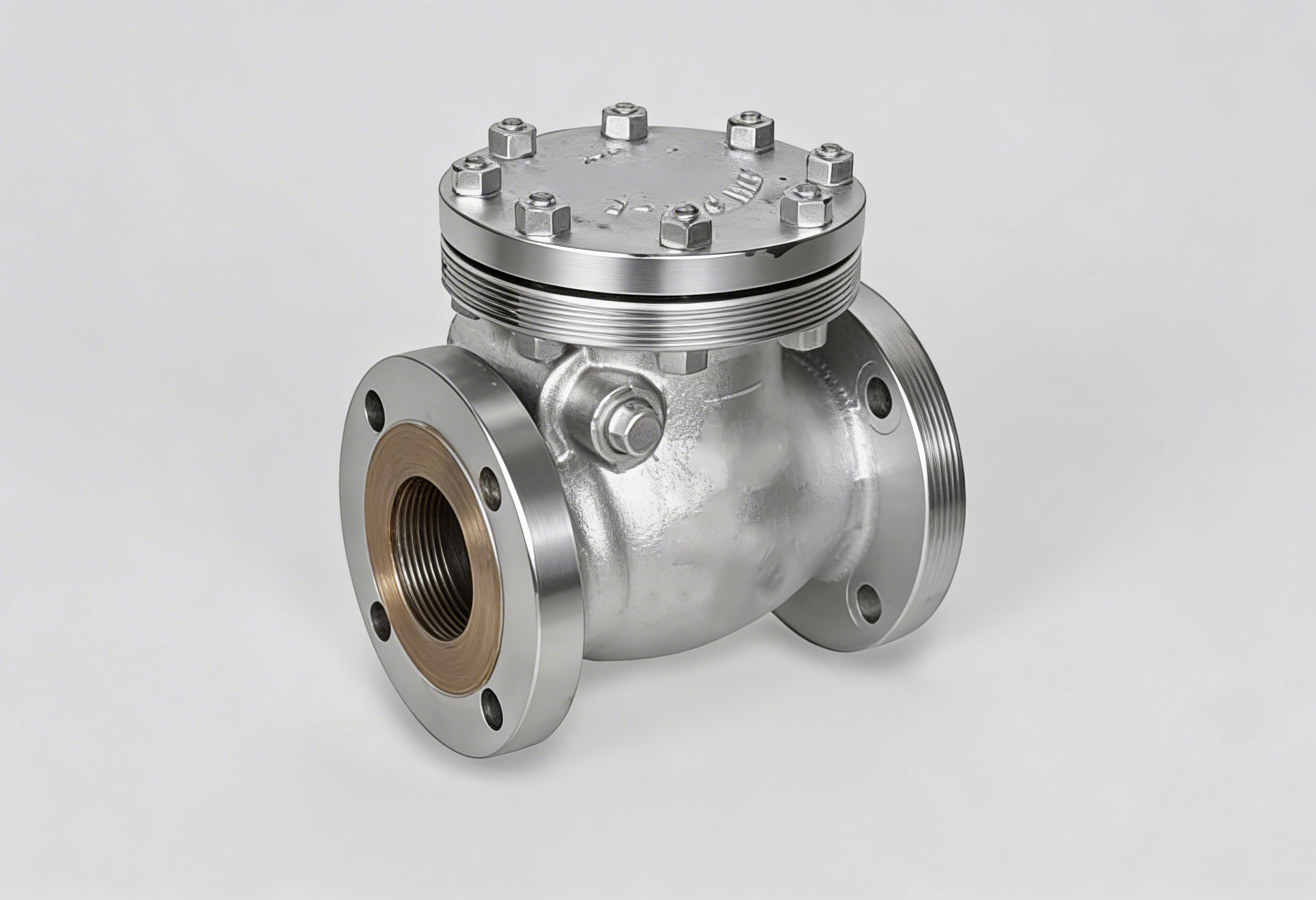

Swing Check Valve

Product-Img
Contact Us

Key Features and Benefits of a Swing Check Valve

A swing check valve is designed to allow unrestricted forward flow while automatically preventing backflow when system conditions change. The hinged disc opens fully with flow pressure, reducing turbulence and keeping pressure loss to a minimum in steady-flow applications.

Its simple internal construction means fewer moving parts, which helps support reliable operation and lower maintenance requirements. Swing check valves are commonly selected for horizontal pipelines where consistent flow direction is expected.

When selecting a swing check valve, key factors include pressure rating, temperature range, and the type of fluid being handled. Material selection should align with operating conditions, with common options such as carbon steel, stainless steel, and ductile iron.

Connection type, valve size, and installation orientation should also be considered to ensure proper disc movement and effective sealing. Correct specification helps maintain system efficiency and protects downstream equipment from reverse flow.

Applications of Swing Check Valve

A swing check valve is a type of non-return valve that allows fluid to flow in one direction only, helping to prevent reverse flow within a piping system. It is commonly installed to protect pumps, pipelines, and downstream equipment from backflow-related damage.

The valve operates using a hinged disc that swings open when fluid flows in the intended direction. When flow slows, stops, or reverses, the disc automatically swings back into the closed position under gravity or reverse pressure. This self-acting mechanism allows the valve to function without external control or manual intervention.

Because of this operating principle, a non return swing check valve is best suited for applications with relatively steady flow conditions. It is widely used in water treatment systems, oil and gas pipelines, HVAC networks, and general industrial piping where dependable backflow prevention is required without significant pressure loss.

Why Choose OTOM Services for Swing Check Valves

As a Singapore-based industrial valve supplier, OTOM Services supports regional projects with dependable swing check valve solutions suited for industrial operating conditions. Our sourcing focuses on reliable manufacturers whose products meet recognised industry standards.

We provide technical support for valve sizing and selection, helping ensure the swing check valve matches system pressure, flow characteristics, and installation requirements. This reduces the risk of improper operation and supports long-term system reliability.

OTOM Services also offers fast turnaround and responsive project support, helping clients meet installation and maintenance timelines. Swing check valves supplied are compatible with other OTOM valve solutions, allowing for consistent performance across integrated piping systems.

Frequently Asked Questions

A swing check valve is used to prevent reverse flow in a piping system. It allows fluid to pass in one direction and closes automatically when flow stops or reverses, helping to protect equipment and maintain system stability.

A swing check valve operates using a hinged disc. Forward flow pushes the disc open, while reverse flow or loss of pressure causes the disc to swing back into the closed position, stopping backflow without external control.

Swing check valves are best suited for systems with steady flow and low pressure drop requirements. Other check valve types, such as lift or dual-plate designs, may be preferred for pulsating flow or space-constrained installations.

Swing check valves are typically installed in horizontal pipelines to allow proper disc movement. Vertical installation may be possible in upward flow configurations, depending on the valve design and manufacturer specifications.

Key considerations include operating pressure, temperature, fluid type, installation orientation, material compatibility, and connection type. Proper selection helps ensure effective backflow prevention and reliable operation.

Contact Us for Enquiries and Valve Solutions

If you are sourcing a swing check valve for a new system or replacement application, our team is ready to assist. We support requests for datasheets, compliance documentation, and project-specific valve recommendations based on operating conditions and installation requirements.

Contact us today to discuss sizing, materials, and suitable configurations for your application.
